SW28 (28Nm Direct Drive Wheel) - (Discontinued)
SW28 (28Nm Direct Drive Wheel) - (Discontinued)

SW28 (28Nm Direct Drive Wheel) - (Discontinued)

$1,440.00 inc. VAT (UK)
$1,200.00 exc. VAT (EU & International)

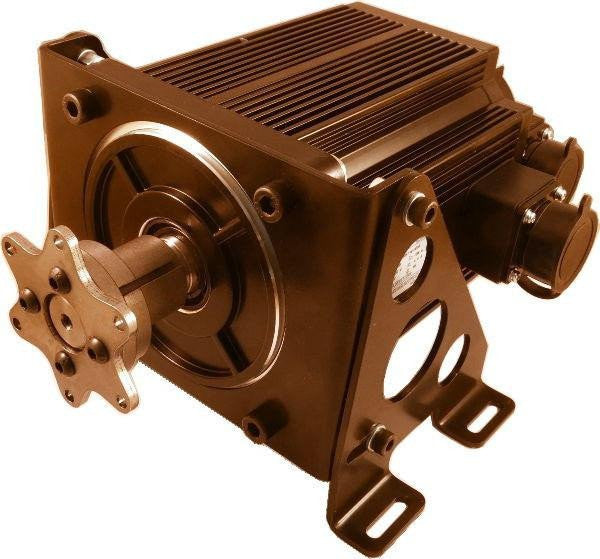

Direct Drive Wheel built around the MiGE 130ST-M15015 (large MiGE) with a 10,000 ppr /40,000 cpr (40K) incremental encoder or 2048 line /.2,097,152 (2M) cpr sincos encoder.

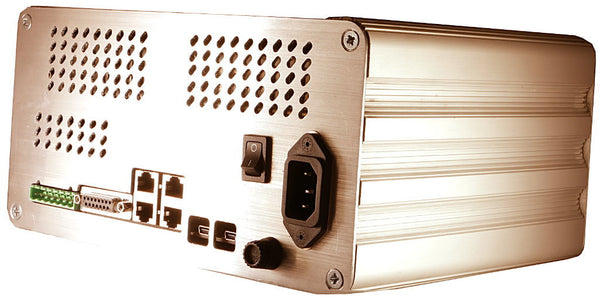

The motor controller is housed in a quiet fan-cooled aluminium enclosure and consists of a Granite Devices IONI Pro HC and SimuCUBE driven by a MeanWell SDR-480-48 air-cooled power supply unit delivering 480W continuous/720W burst. This combinationi drives the 130ST-M15015 to 27.9Nm - just short of its 30Nm maximum torque output.

Included are

  • SW series Control Unit
  • MiGE 130ST-M15015 with 40K incremental encoder or 2M sincos encoder
  • 3 metre non-shielded or 2.5 metre shielded motor power cable
  • 3 metre motor encoder cable
  • Emergency Stop unit with 3 metre cable
  • 2x 2 metre USB Data Cables
  • Motor Shaft to Steering Wheel Adapter
  • An adjustable motor mount
  • Location specific Power Cable
  • 1-to-1 "Software Configuration Session" (1 hour) to setup up the wheel, walk you through the system and answer any questions you may have
  • 2 year warranty

You only need to supply a Steering rim of your choice (standard 70mm PCD - Momo, Sparco, OMP etc.) and 4x M8 bolts to secure the motor to your rig.

All units are configured and tested prior to dispatch.
